ABB 266HSH Gauge Pressure Transmitter

Our Products: Pressure Transmitters
SKU: 266HSH
266HSH Gauge Pressure Transmitter is a high overload gauge pressure transmitter with a maximum working pressure up to 90MPa, 13050psi suitable for measuring liquid, gas or steam pressure in a pipe or on an open tank.
Standard Features
Span-Sensor Limits: 6.4 and 642 in. H2O/ Base Accuracy 0.075%, -H
Diaphragm Material / Fill Fluid: AISI 316L ss / Silicone oil, NACE, -S
Process Connection Material / Process Connection: AISI 316L SST / 1/2-14 NPT female, NACE, -B
Housing Material / Electrical Connection: Aluminium Alloy (Barrel Version) / 1/2-14 NPT, -A
Output: HART digital communication and 4...20 mA (Additional options to be ordered by additional ordering code), -1
Hazardous Area Certification: FM US Class I,II, Division 1,2, Group A to F (XP,IS,NI), -E6
Configuration: Standard Pressure = H2O / Psi at 68F, -N2
List Price: $1,561.00
Price: $1,424.00
You Save: $137.00 (9%)

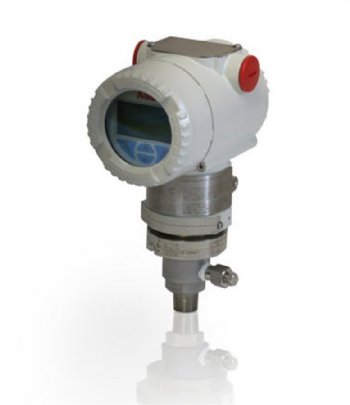

ABB 266HSH Gauge Pressure Transmitter
ABB 266HSH Gauge Pressure Transmitter
Product Details
266HSH Gauge Pressure Transmitter is a high overload gauge pressure transmitter with a maximum working pressure up to 90MPa, 13050psi suitable for measuring liquid, gas or steam pressure in a pipe or on an open tank. With a long-term stability, 266HSH grants lasting performances even in extreme ambient and process conditions.

In addition to the traditional configuration tool (provided locally via local keys combined with LCD indicator or via hand held terminal or PC configuration tools) the innovative TTG (Through The Glass) technology allow users to configure the instruments in the field without removing the windowed front cover and consequently to save a lot of time, highlighting ABB commitment to satisfy users’ needs of simplicity and flexibility.
This transmitter features in-field replaceable electronics module that thanks to the auto-configuration functionality dramatically improves plant productivity. Its intuitive plug-and-play display with easy setup procedure really helps users by saving time and lowering maintenance and inventory costs.

266HSH Data Sheet

266HSH Opertating Instuctions
